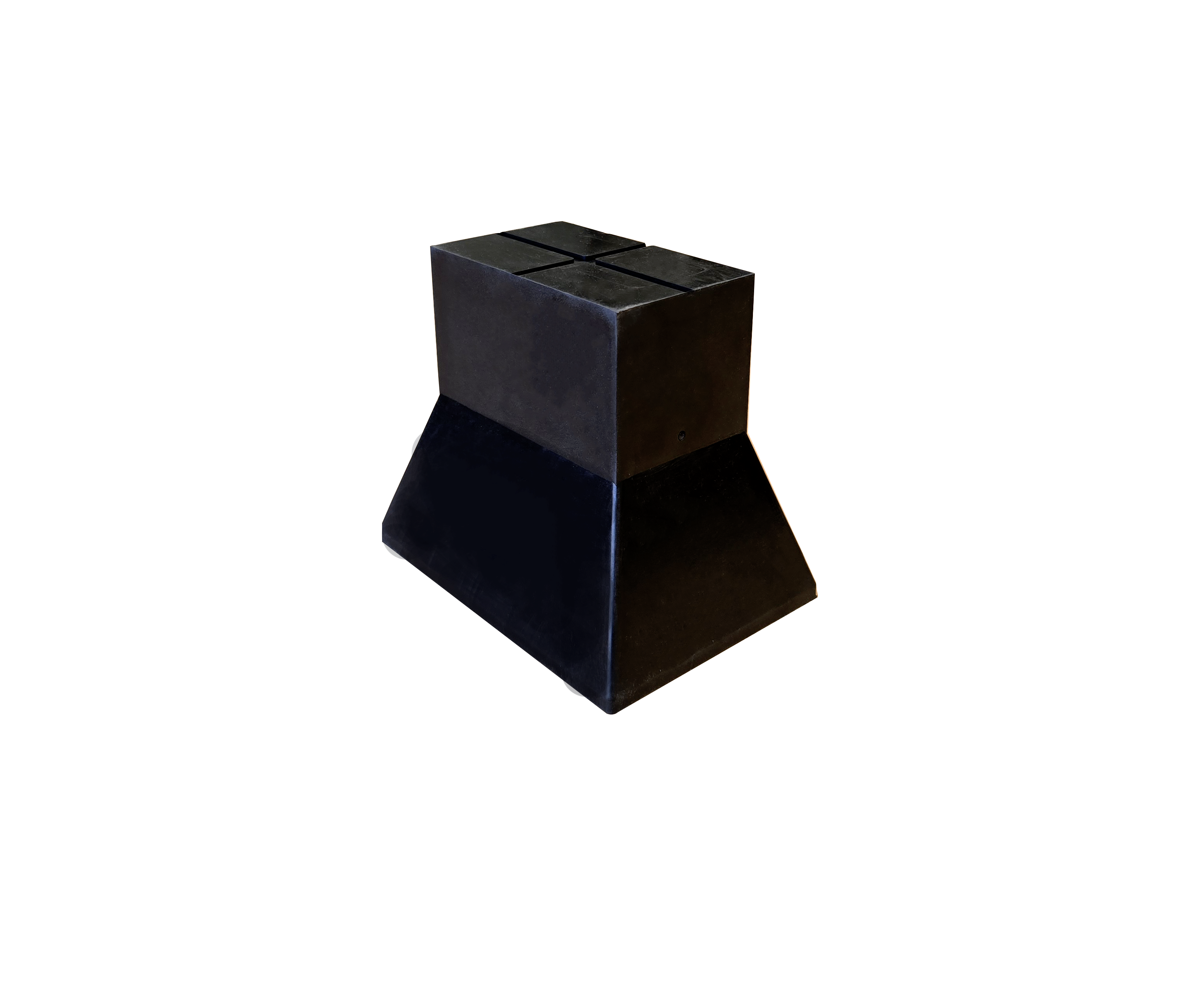

Angled Jack Blocks

Description

Worried about EV battery damage due to improper lift contact points? The Angled Jack Blocks solves that problem for auto shops, EV specialists, and home mechanics.

Designed for today’s electric vehicles with fixed lift points, the Angled Jack Blocks provides unmatched stability, precision, and durability. This block cushions the lift arms, aligns perfectly with EV lift points, and prevents expensive underbody or battery damage during service.

Whether you’re running a high-volume repair shop or wrenching on your EV at home, the R103 brings professional-grade safety and reliability to every lift.

✅ Protects EV batteries during lifts
✅ Reduces risk of accidents or costly repairs

Suitable for car types:

ALFA ROMEO: Tonale Hybrid

AUDI: Q8 e-tron, Q8 Sportback e-tron, SQ8 e-tron, SQ8 Sportback e-tron

BYD: Seal U, Seal UDM-i, Tang

FIAT: 500e

HONDA: E:Ny1

KIA: Niro EV, e-Soul, EV9

LEXUS:LBX, RX Hybrid

MERCEDES: EQA, EQB, EQE SUV, EQS SUV

NISSAN: Ariya

PEUGEOT: e-2008, E-3008

PORSCHE: Macan Electric

RENAULT: Austral Hybrid, Espace Hybrid, Rafale E-Tech

TOYOTA: bZ4X, RAV4 Hybrid

VOLVO: EX90

Suitable for quick lift and scissor lifts

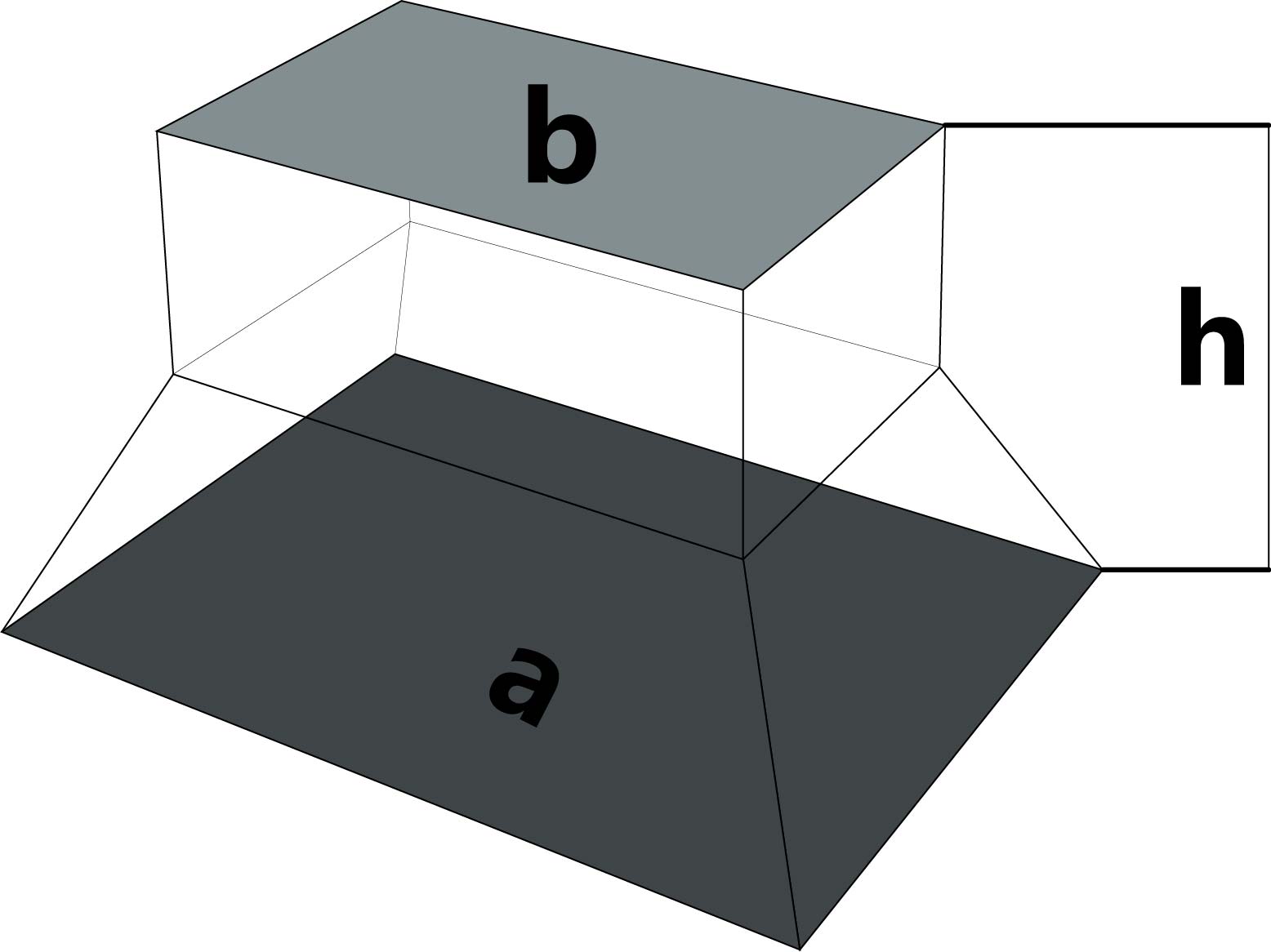

Dimensions

a=140 x 100mm

b=100 x 60mm

h=120mm

1set=4pcs

Weight：1.16kg/pc

Warning

DO NOT position the lift arm pads under the Battery or side rails.

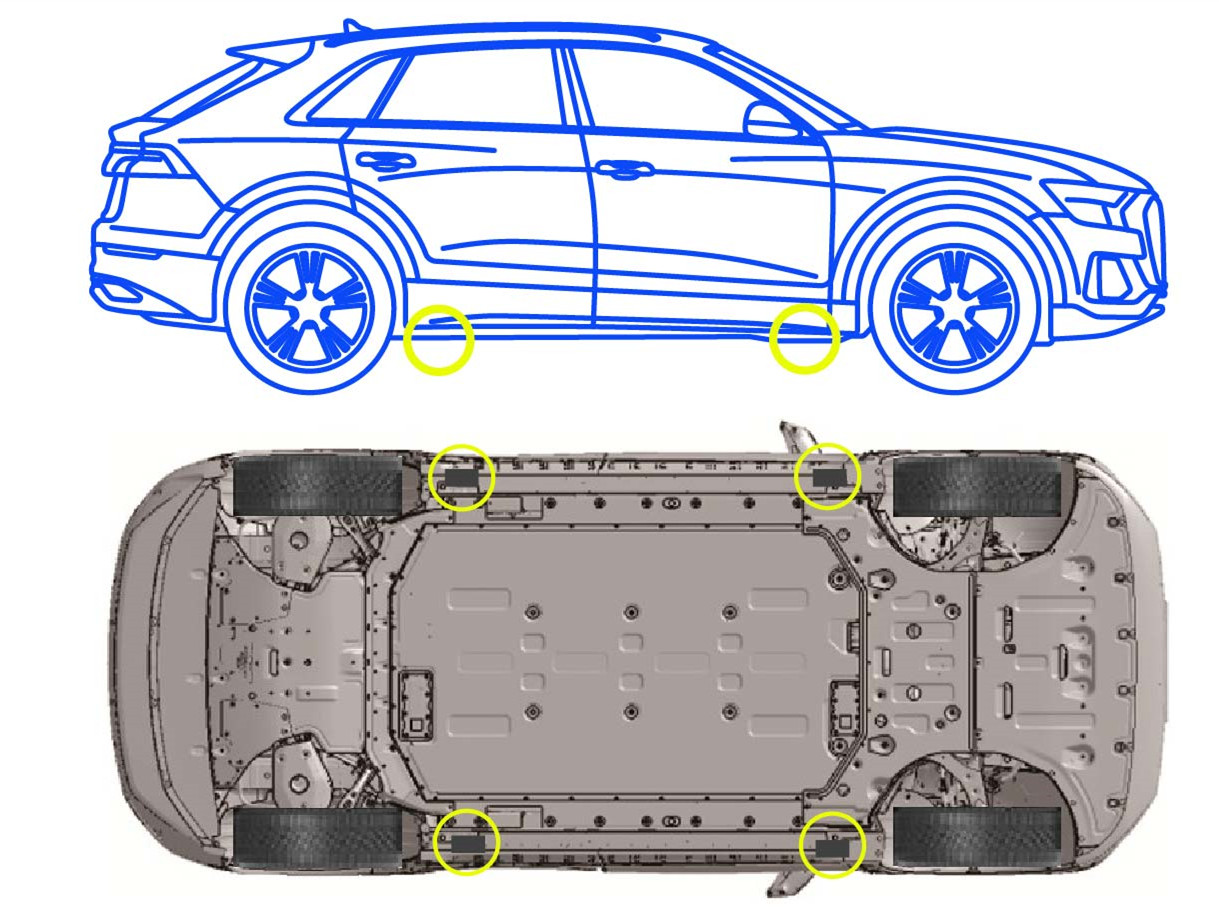

Take Audi e-tron as an example

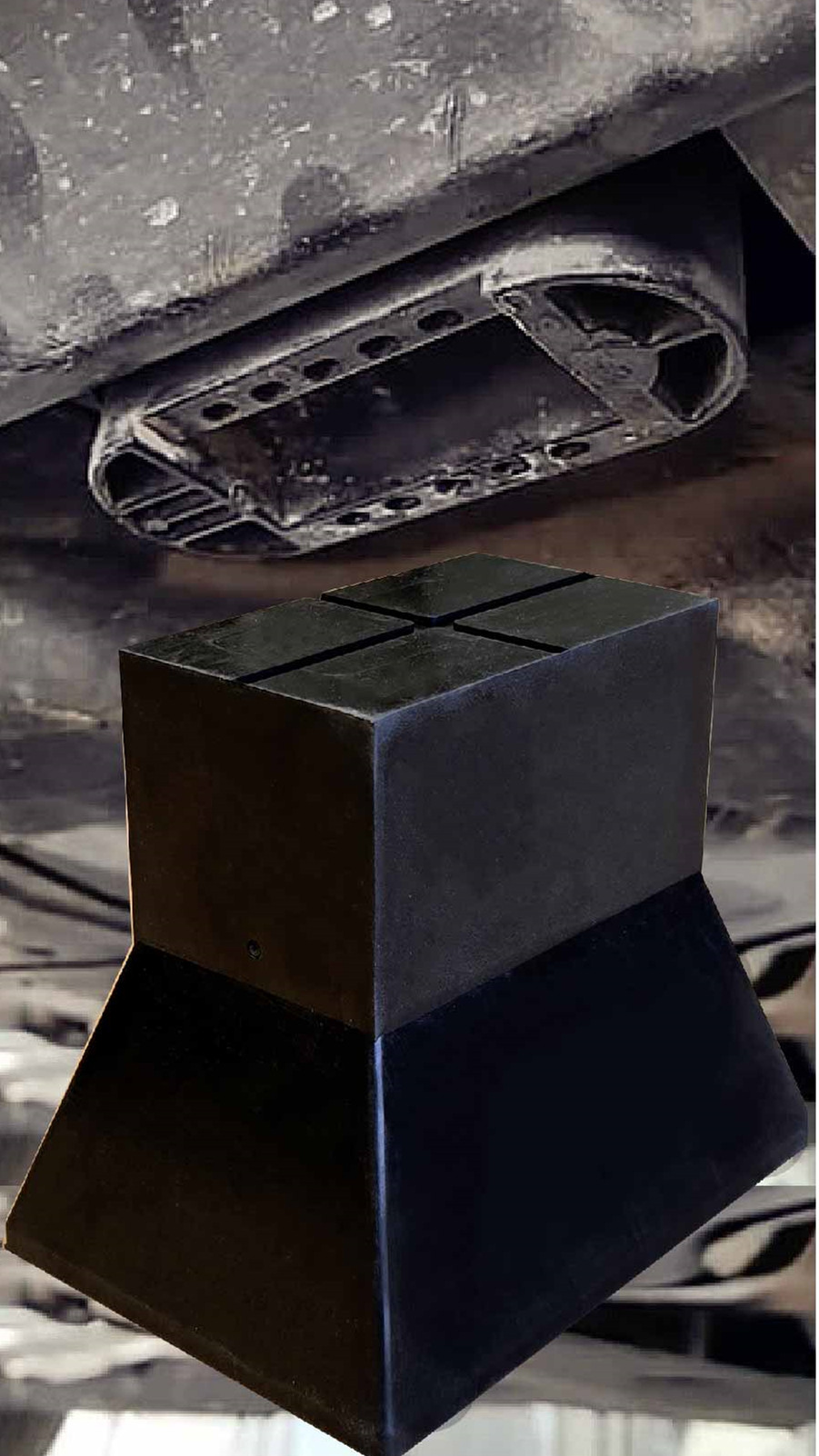

Position of the lift

Position of the lift

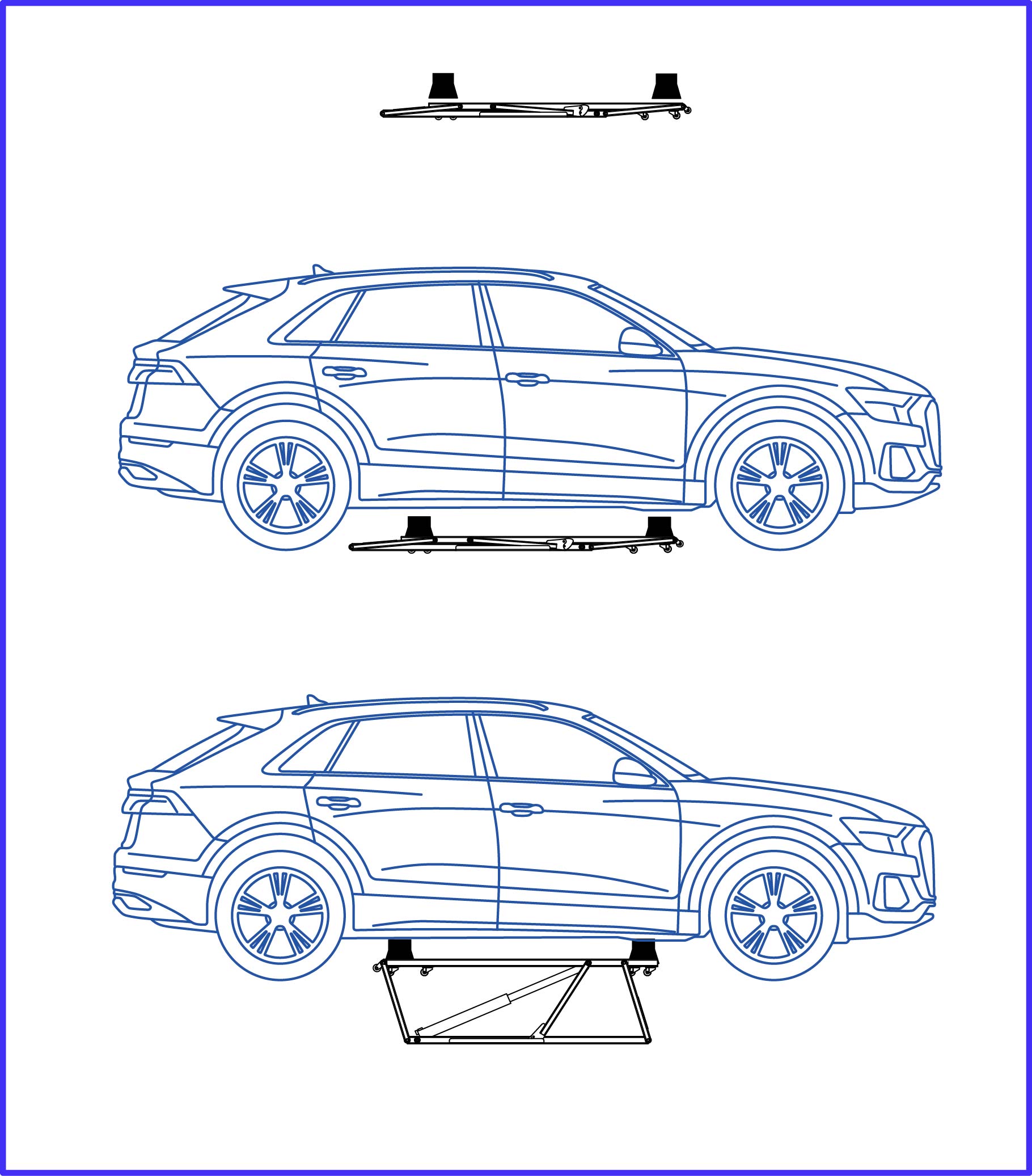

Diagram applied to Quick Lift

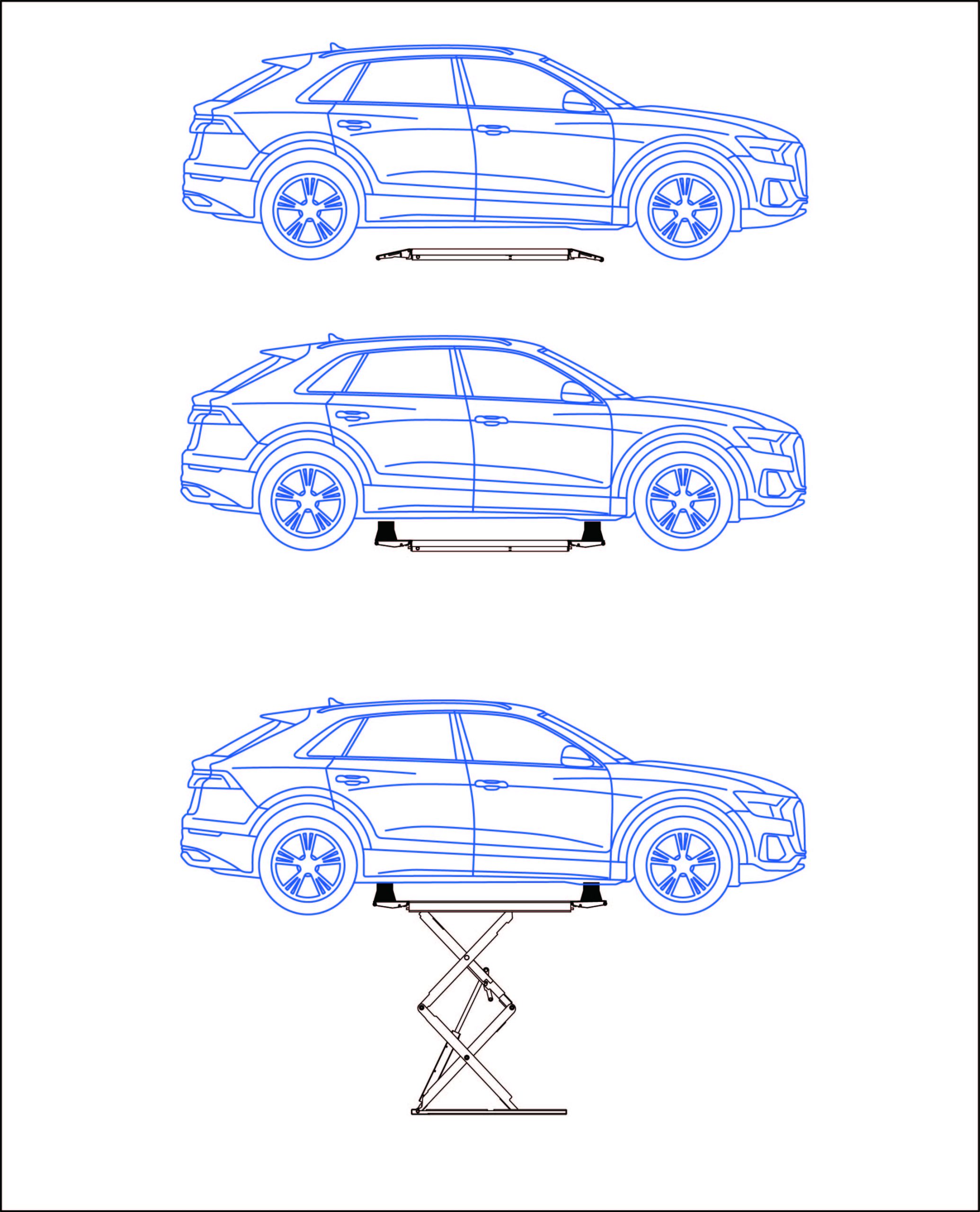

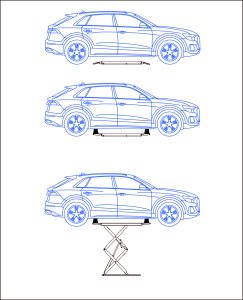

Diagram applied to Scissors Lift
